Floor Machine

The Galaxy, a durable, powerful floor machine in an economical package, is precision balanced for easy operation and maneuverability.

Durable, heavy-duty metal base and handle for extended life.

Ergonomic handle adjustment lever provides a comfortable custom fit without stooping or bending to adjust the handle.

Power cord instantly uncoils when handle adjustment lever is released.

Convenient storage peg for brush or pad driver when not in use.

Unique two-piece design for ease of shipping. Out-of-box assembly is a simple five-bolt operation (patent pending).

For safety, the mechanical lock-out on the handle must be released before the switch lever will activate.

Powerful 1 HP and 1.5 HP models available in 17 inch or 20 inch widths.

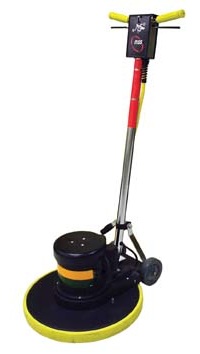

Floor Machine

For a durable, powerful floor machine in an economical package, choose the Mustang. Precision balanced for easy operation and maneuverability, this machine scrubs, strips, spray buffs, polishes, and shampoos at 175 RPM.

The Mustang features a straight line planetary gear system that provides efficient transfer of power from the motor to the pad driver. This design ensures years of smooth, quiet, trouble-free operation.

A mechanical lock-out on the handle must be released before the switch lever on the Mustang will activate. This special safety mechanism helps prevent unauthorized operation when the machine is unattended.

The Mustang is ideal for schools, office buildings and other facilities where appearances need to be kept up while holding equipment costs down.

The Mustang comes with either a 1 HP or 1.5 HP 66-frame motor, and is available in 17 and 20-inch widths.

The Pacesetter^TM 17/20 is a 1.0 hp, 175 rpm machine available in 17 and 20-inch sizes. Dual capacitors provide an extra burst of power to the machine when needed for start-up or during operation, without overloading the electrical circuits in the facility.

Whether stripping, scrubbing, screening, or bonnet cleaning, the Advance Pacesetter^TM line of floor machines has a model to fit your needs and applications. Each of the four Pacesetter^TM models is built with an all cast metal, chrome plated base. The heavy-duty construction and durability of the Pacesetter^TM sets it above the competition.

All Pacesetter^TM models have an ergonomic molded handle that protects the user's hands during operation along walls and around corners. A red safety lock switch allows the operator to easily control when the machine goes into operation. An easy-to-use compression style lever changes the height adjustment of the handle for all operators. Pad holders are standard on the Pacesetter^TM, and the yellow, super-flex cord offers ease in cord handling and reduced tangling. A clear plastic hospital plug allows the operator to verify the electrical integrity of the connection at each use of the machine.

1.0 hp AC motor, 175 rpm, 120 V

Available in 17 and 20 inch sizes

Easy to use handle height adjuster

Safety activation switch on all models

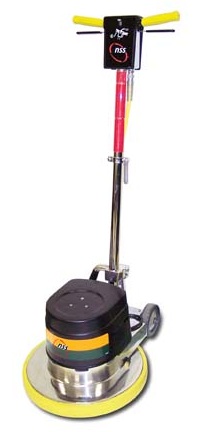

Heavy-Duty Floor Machine

Super durable and built to be the best, the 175-RPM Thoroughbred is precision balanced for maximum cleaning efficiency and reduced operator fatigue.

An aggressive power plant, partnered with a precision gear train, gives the Thoroughbred the balance, dependability and power necessary to tackle any buffing, scrubbing, polishing, shampooing or bonnet cleaning job.

A straight-line planetary gear system provides efficient transfer of power from the 66-frame motor to the floor brush, assuring smooth, quiet , trouble-free operation.

The Thoroughbred features a mechanical lock-out that must be released before the switch lever can be activated. This safety feature prevents unauthorized operation of the machine if it is temporarily left unattended in a public place.

For deep-down carpet shampooing or controlled floor scrubbing, the Thoroughbred can also be paired with the appropriate brush and solution tank.

The Thoroughbred is available with a 1 or 1.5 HP motor and in 17-in. and 20-in. widths so you can match the machine's muscle and size to your requirements.

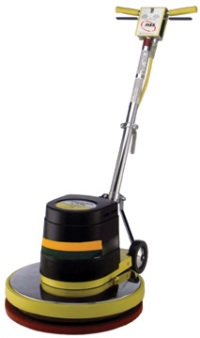

Variable-Speed Floor Machine

For versatility in floor and carpet care, the Maverick 300 sets the standard for variable-speed floor machines. By dialing the appropriate speed, the Maverick 300 will polish, spray buff, scrub, and strip.

A powerful 1.5 HP motor assures excellent performance at any speed between 200 and 310 RPM.

At lower speeds, the Maverick 300 is the ideal machine to rotary scrub hard floors and carpeted areas. Lower pad speeds are also recommended when using the Maverick 300 to wet strip hard floors.

The highest pad speed—310 RPM—will buff or spray buff hard floors or bonnet clean carpet.

The Maverick 300, available in 17-inch (43.2 cm) and 20-inch (50.8 cm) widths, includes a lock-out mechanism on the handle. This safety feature helps to prevent unauthorized use of the machine.

The Triple S Q-Line Floor Machines are built for dependable performance year after year. The time tested design and commercial grade components can be counted on to handle multiple tasks throughout your facility.

The Q-17 and Q-20 are powered by capacitor start and capacitor run commercial motors. The standard 175 rpm models feature cast aluminum bases and yellow power cords.

The Q-Line Floor Machines combine value with performance without sacrificing dependability

Specifications

Whether stripping, scrubbing, screening, or bonnet cleaning, the Advance Pacesetter^TM line of floor machines has a model to fit your needs and applications. Each of the four Pacesetter^TM models is built with an all cast metal, chrome plated base. The heavy-duty construction and durability of the Pacesetter^TM sets it above the competition.

All Pacesetter^TM models have an ergonomic molded handle that protects the user's hands during operation along walls and around corners. A red safety lock switch allows the operator to easily control when the machine goes into operation. An easy-to-use compression style lever changes the height adjustment of the handle for all operators. Pad holders are standard on the Pacesetter^TM, and the yellow, super-flex cord offers ease in cord handling and reduced tangling. A clear plastic hospital plug allows the operator to verify the electrical integrity of the connection at each use of the machine.

The Pacesetter^TM HD is available in 17 and 20-inch sizes. A triple-planetary gear design lasts longer than other gear drives because the triple-planetary gear does not develop a wear pattern. A sealed gear box requires no maintenance.

1.5 hp, 175 rpm available in 17 and 20 inch sizes

Triple-planetary gear design

Sealed gear box

Ergonomic molded handle

Red safety lock switch standard

New to the line is the Pacesetter 20SD which is a super duty 20 inch floor machine. This machine is 1.75 hp and runs a 175 rpm.

Whether stripping, scrubbing, screening, or bonnet cleaning, the Advance Pacesetter^TM line of floor machines has a model to fit your needs and applications. Each of the four Pacesetter^TM models is built with an all cast metal, chrome plated base. The heavy-duty construction and durability of the Pacesetter^TM sets it above the competition.

All Pacesetter^TM models have an ergonomic molded handle that protects the user's hands during operation along walls and around corners. A red safety lock switch allows the operator to easily control when the machine goes into operation. An easy-to-use compression style lever changes the height adjustment of the handle for all operators. Pad holders are standard on the Pacesetter^TM, and the yellow, super-flex cord offers ease in cord handling and reduced tangling. A clear plastic hospital plug allows the operator to verify the electrical integrity of the connection at each use of the machine.

1.75 hp, 175 rpm available in 17 and 20 inch sizes

Triple-planetary severe duty gears

Sealed gear box

Ergonomic molded handle

Red safety lock switch standard

Whether stripping, scrubbing, screening, or bonnet cleaning, the Advance Pacesetter^TM line of floor machine has a model to fit your needs and applications. Each Pacesetter^TM is built with an all cast metal, chrome plated base. The heavy-duty construction and durability of the Pacesetter^TM sets it above the competition.

All Pacesetter^TM models have an ergonomic molded handle that protects the user's hands during operation along walls and around corners. A red safety lock switch allows the operator to easily control when the machine goes into operation. An easy-to-use compression style lever changes the height adjustment of the handle for all operators. Pad holders are standard on the Pacesetter^TM, and the yellow, super-flex cord offers ease in cord handling and reduced tangling. A clear plastic hospital plug allows the operator to verify the electrical integrity of the connection at each use of the machine.

The Pacesetter^TM 20TS is a two-speed floor machine with a 1.5 hp, DC rectified motor. The two speed machine will run at 180 and 320 rpm.

20 inch, 1.5 hp DC rectified motor, 180 and 320 rpm

Triple-planetary all metal gear box

Easy to use handle height adjuster

Safety activation switch

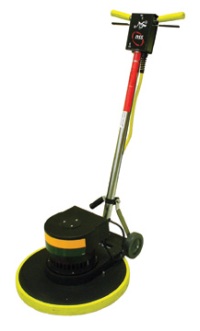

Dual-Speed Floor Machine

For a versatile, economical dual-speed floor machine, nothing beats the Mustang 300 DS. Precision-balanced for easy operation and maneuverability, this machine saves time and money by effectively doing the job of two scrubbers - a standard 180 RPM floor machine and a 300 RPM buffer.

High-speed operation is perfect for polishing, buffing, or damp scrubbing hard floors. The Mustang 300DS can also be used with a bonnet for routine carpet maintenance.

Low speed operation is used for efficient scrubbing, wet stripping, and polishing in congested areas where greater control is needed.

A lock-out safety mechanism on the handle prevents unauthorized operation if the machine is left unattended.

Available in 17 and 20-inch widths, the Mustang 300 DS is ideal for schools, office buildings, and other facilities where appearances need to be kept up while holding equipment costs down.

Turning at 285 rpm, the high-speed All-Purpose Matador^TM brings a floor to a deep, lustrous sheen in half the number of passes than with an ordinary floor machine.

That Matador can make your labor savings as impressive as your floors. This is just part of the story, the All-Purpose Matador^TM is more than just a great spray cleaning machine. It's also a great high-speed scrubber...and a great high-speed carpet shampooer - with the "Soft Touch" floating shampoo brush. A smooth disc carries the weight of the machine while a ring of bristles is gently forced into the carpet for deep-down cleaning.

A person who operates a floor machine for hours a day can appreciate all the features built into a Matador^TM. Precision balance for ease of operation...fingertip handle positioner, comfortable twist grip starting, a safety interlock that prevents the machine from starting until the release button is pushed, and a big bumper to protect furniture and woodwork.

285 rpm is ideal for a wide variety of applications

Durable PowerFlex belt driven transmission

Powered by a 1.5 hp DC rectified motor

Built in 3 gallon solution tank provides extra down pressure and facilitates spray buffing

Convenient finger tip handle adjustment and solution control
